GD-DH 0.437-25D-I0.75-06

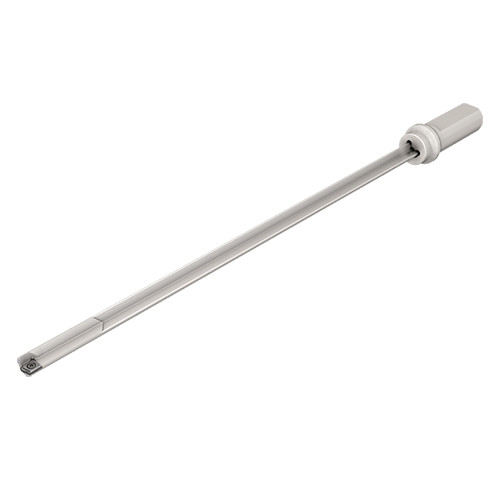

Gundrills carrying the ZSGT indexable inserts, with single chip splitting cutting edge and a wiper for high hole surface quality. The drills are available in 15, 20, 25, 35, 40 and 45 drilling length to diameter ratios.
Produktspezifikationen

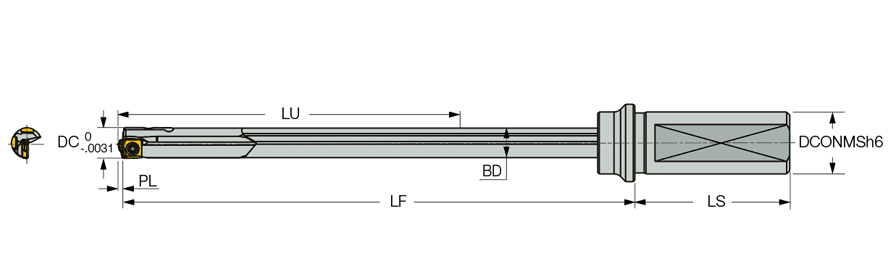

| Schneidendurchmesser (DC) | 0.437″ | Funktionslänge (LF) | 12.952″ |
| Nutzlänge (LU) | 11.882″ | Kühlmitteleigenschaft (CSP) | Coolant Thru |
| Anwendung | | Tieflochbohrer | | Maßsystem | Inch |
| Aufnahmedurchmesser, maschinenseitig (DCONMS) | 3/4″ | Schaftausführung | Steel |
| Produktart | Deep Hole / Gun Drill | Nenndurchmesser | 0.437″ |
| Schaftlänge (LS) | 1.968″ | Metrisch/Inch | I |
Produkteigenschaften
| Produktbeschreibung | Gundrills carrying the ZSGT indexable inserts, with single chip splitting cutting edge and a wiper for high hole surface quality. The drills are available in 15, 20, 25, 35, 40 and 45 drilling length to diameter ratios. | COO | Japan |

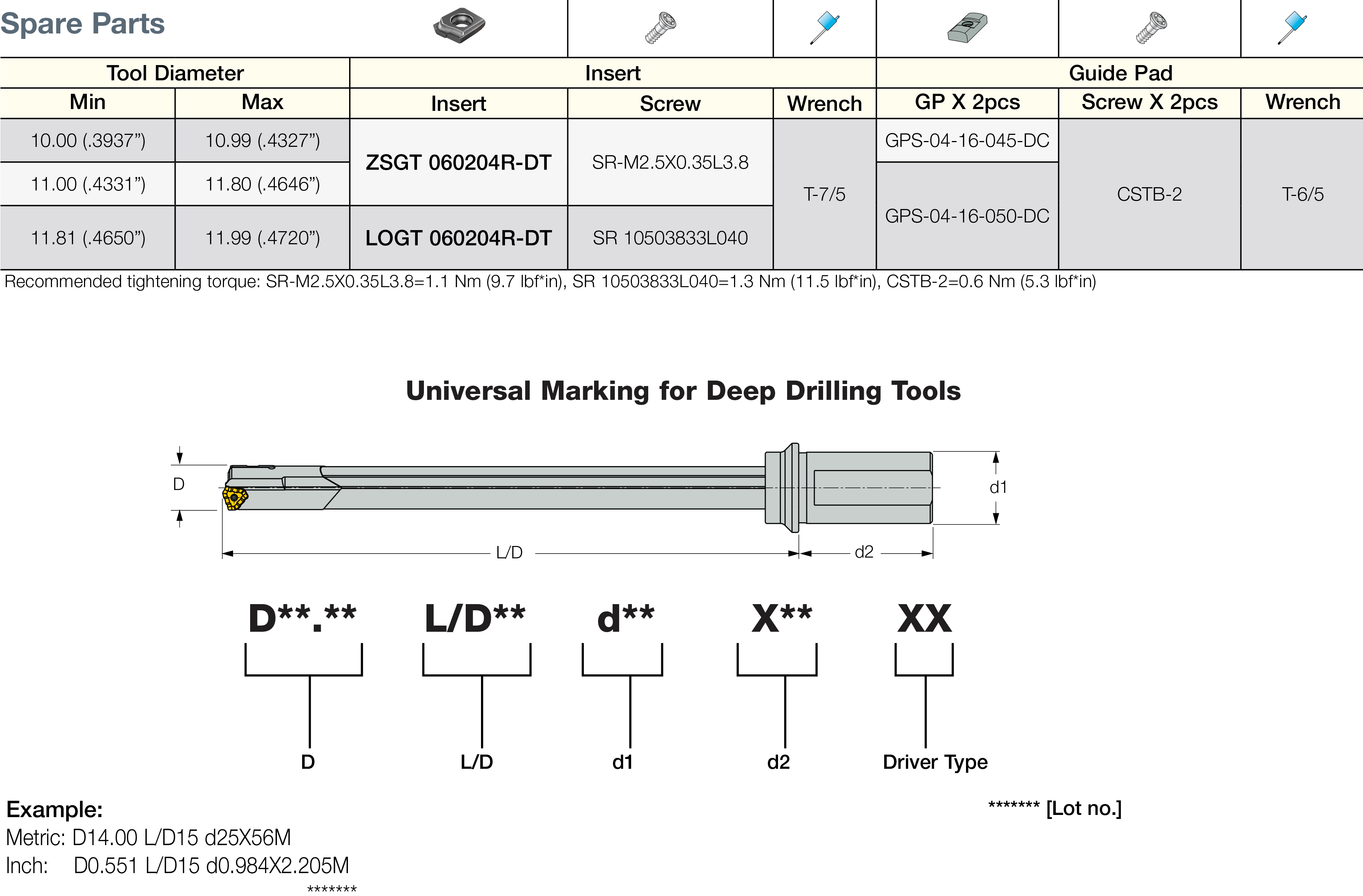

| Bemerkung | For inquiry form, pad and driver selection, click on More Info Note: Gundrills supplied with up to 65 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Versandinfos
Verpackungsgewicht
0.7584
