CHAMRING 120-WN32-09
CHAMRING (einzusetzen mit UNICHAMDRILL) zum Bohren und Fasen in einem Arbeitsgang.

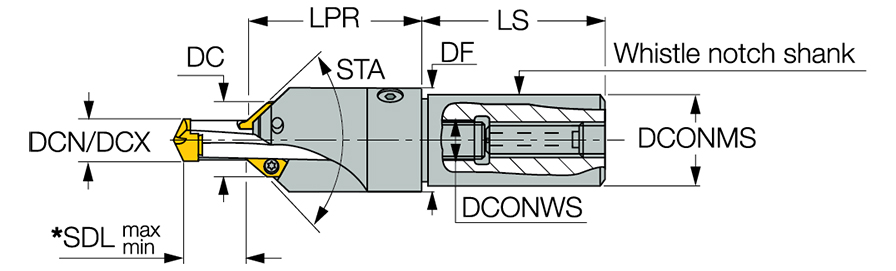

Produktspezifikationen
| Schneidendurchmesser, max. (DCX) | 12.4 mm | Maßsystem | Metric |
| Schneidendurchmesser, min. (DCN) | 11.5 mm | Verpackungsgröße | 1 |
| Bezeichnung Schneidplatte (MIID) | XCGT 09... | Bemerkung | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
| Schaftlänge (LS) | 60 mm | Aufnahmedurchmesser, maschinenseitig (DCONMS) | 32 mm |
| Schaftgrösse (SS) | 32 mm | Schaftausführung | Steel |
| Anwendung | | Bohren | Bohren und fasen | | Metrisch/Inch | M |
| Produktart | Chamfering drills |
Produkteigenschaften
| Produktbeschreibung | CHAMRING (einzusetzen mit UNICHAMDRILL) zum Bohren und Fasen in einem Arbeitsgang. | COO | Israel |
| Bemerkung | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
Versandinfos
Verpackungsgewicht
0.9220
Dokumente und Dateien

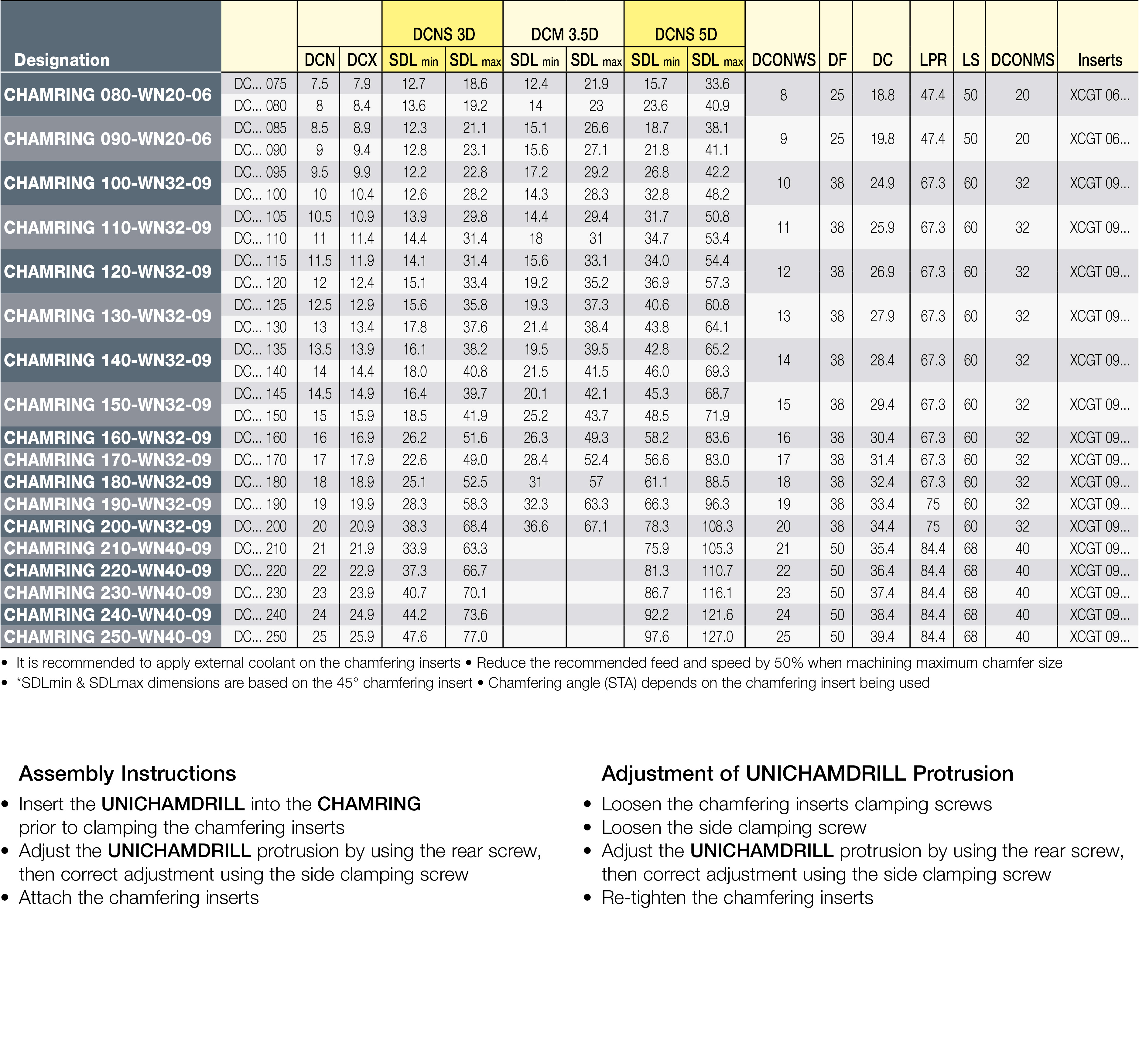

Assembly Instructions Insert the drill into the CHAMRING prior to clamping the chamfering inserts Adjust the drill protrusion by using the rear screw, then correct adjustment using the side clamping screw Attach the chamfering inserts Adjustment of drill Protrusion Loosen the chamfering inserts clamping screws Loosen the side clamping screw Adjust the drill protrusion by using the rear screw, then correct adjustment using the side clamping screw Re-tighten the chamfering inserts
